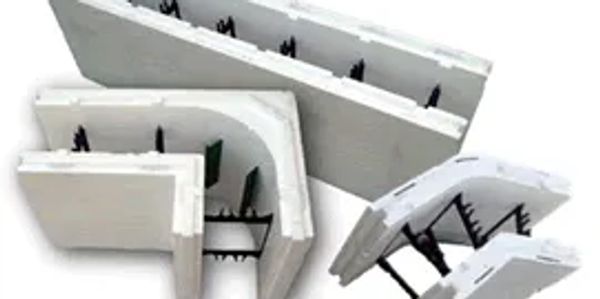

General Specifications: A-ONE FORM (Flat wall)

Dimensions

Length                                   48"

Height                                   16"

6" core width                         11"

8" Core Width                       13"

General Design

Perimeter                              Tongue and Groove

Interior Wall                           Flat

EPS Wall Thickness              2.5"

Surface Area                         5.33 sq ft per side

Attachment Members            16" x 2" OC plastic wall studs

Insulation Value                      R-28 to R-32

Concrete Capacity

6 Inch Core                            1 yard per 10 blocks

8 Inch Core                            1 yard per 7.6 blocks

Additional Products

90 degree Corner                   25" x 17"

45 degree Corner                   12" x 12"

Foam Brick-Ledge                  11" x 48"
